Part 4 - Naviswork - The Review Tab

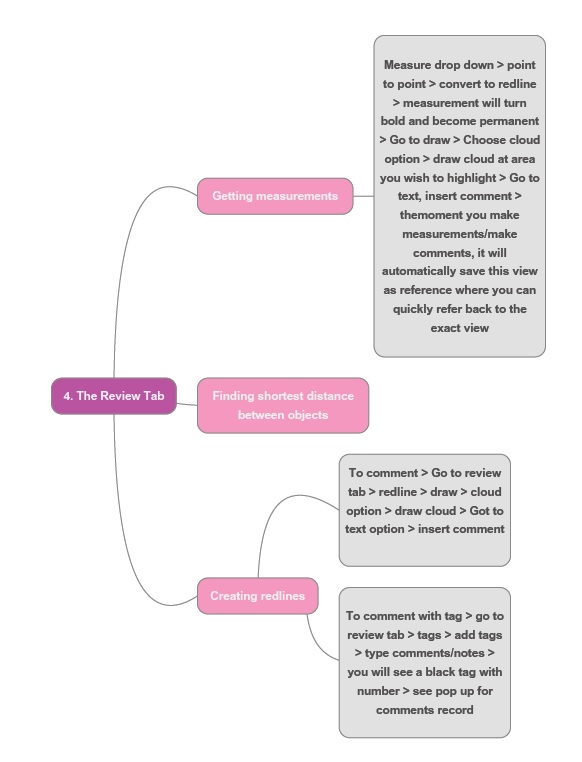

Below is the zoom in mindmap on part 4 of Naviswork - The review Tab

Getting measurement
1) Measure drop down >  point to point > convert to redline > measurement will turn bold and become permanent




Creating Redlines
1)      To comment > go to review tab > redline > draw > cloud option > draw cloud > Go to text option > insert comment

2)      To comment with tag > go to review tab > tags > add tags > type comments/notes > you will see a black tag with number > see pop up below for comments record.


To find out characteristic of walls, right click to select wall to see wall description (item name/item type)
